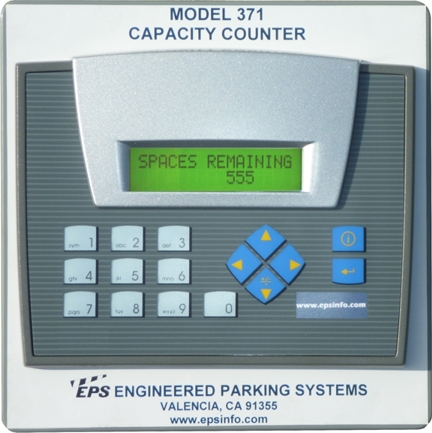

MODEL 371 CAPACITY COUNT SYSTEM

(SPACE COUNTER)

The EPS 371 series capacity count systems are used to count vehicles entering and exiting a parking facility to determine when the lot is full. When the number of available parking spaces reaches zero, an output is triggered to turn on lot full signs and disable entry devices such as ticket machines and card readers.



FEATURES:

Anti-Coincidence Logic insures that all inputs are recognized

Counts up to 16 lanes or 8 bidirectional lanes

Any input can be steered for an "entrance" count or an "exit" count

Count capacity and control for up to 32,500 spaces

Count display indicates number of spaces remaining

All inputs and outputs connected to terminal blocks

Count display indicates number of spaces remaining

Internal battery protects data during loss of AC power

Output relay provides contact closure for controlling lot full sign and entry device when remaining space is equal to zero

2-line, 16-character backlit LCD display

Operates on 24 VDC (Transformer included)

6.3" High X 6.3" Wide X 4" Deep
