Lot Full Sign

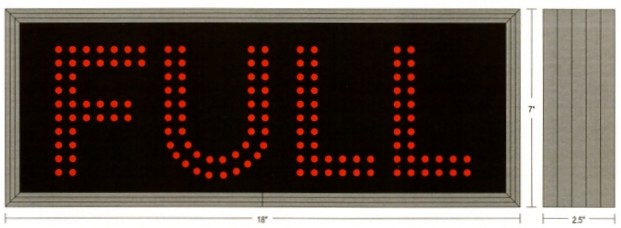

Model 370LED

Our illuminated full signs notify traffic when parking lots are full, usually operated by one of the EPS model 371 series capacity counters. They are maintenance free and easy to read. They feature a break-resistant lexan message panel and specially designed louvered sunscreen. Standard Finish is duranodic bronze.



SPECIFICATIONS
bullet

CABINET DIMENSIONS: 7" H X 18" W X 2.5" D

bullet

ILLUMINATION SOURCE: Super bright, wide viewing angle red LEDs. (Other colors available) Message "blankout" when turned off. long life, up to 100,000+ hours.

bullet

ELECTRICAL: Integrated solid state power supply. Standard voltage: 120 VAC. Optional voltages: 9-36 V, 240 VAC, 277 VAC. Maximum amps per lighted message (at 120 volts) 0.06 amps. UL/CUL approved for wet locations.

bullet

CONSTRUCTION: Face: Single faced sign. Extrusions: Slim line continuous, corrosion resistant, aluminum. Housing: 2.5" deep. Face Material: Impact resistant, red tinted acrylic 1/8" thick.

bullet

FINISH: Standard cabinet color: Duronic bronze. Custom colors available.

      (SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE)
