Slide Gate Operators

Home Up Table of Contents Search our Web





Home Up Table of Contents Search our Web

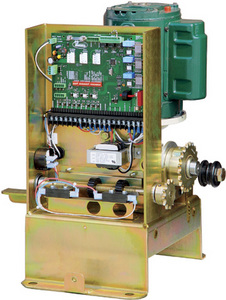

RAM-100

bullet

20' @ 700 lbs.

bullet

1' Per Second

bullet

Continuous Duty

bullet

1/2 HP Motor

bullet

120 VAC

bullet

4.5 Amp

bullet

50/60 Hz

bullet

22"H X 14-1/2"L X 15"W

bullet

110 lbs.

bullet

Foot Pedal release

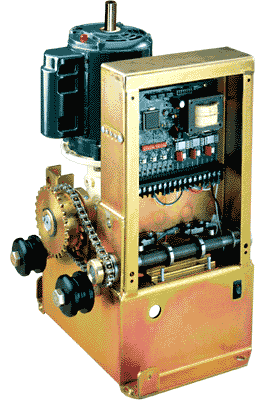

RAM-1000

bullet

35' @ 1000 lbs.

bullet

1' Per Second

bullet

Continuous Duty

bullet

1/2 HP Motor

bullet

120 VAC

bullet

4.5 Amp

bullet

50/60 Hz

bullet

26"H X 16"L X 16-1/2"W

bullet

125 Lbs.

bullet

Foot Pedal Release

RAM-5000

bullet

40' @ 1000 Lbs.

bullet

1' Per Second

bullet

Continuous Duty

bullet

1/2 HP Motor

bullet

120 VAC

bullet

4.5 Amp

bullet

50/60 Hz

bullet

25"H X 16-1/2"L X 18-1/2"W

bullet

125 Lbs.

bullet

Chain Release

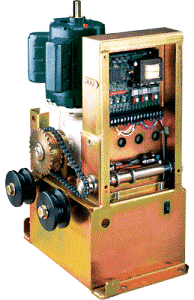

RAM-5500

bullet

35' @ 1500 Lbs.

bullet

1' Per Second

bullet

Continuous Duty

bullet

3/4 HP Motor

bullet

120 VAC

bullet

8.5 Amp

bullet

50/60 Hz

bullet

27"H X 16"L X 16-1/2"W

bullet

135 Lbs.

bullet

Foot Pedal Release



RAM-5100 Maximum gate size and weight, 40' @ 2000  Lbs.     Motor-3/4 HP, 120 VAC, 8.5 Amp. RAM-5200 Maximum gate size and weight, 40' @ 3000  Lbs.     Motor-1 HP, 220 VAC, 4.5 Amp.

 Gate Operator Quick Reference Guide

ACCESSORIES COMMON TO GATE OPERATORS:

Loop Detector    Photo Beam    Radio Controls    Magnetic Gate Lock
