Biometric Access Control

FINGER007

Access Control Unit with Finger Biometric / Proximity / Keypad and LCD

The FINGER007 is an intelligent field programmable Standalone / Network Access Controller based on dual microprocessors, designed for the highest security access control and Time and Attendance (TA Version) with built-in 4" proximity reader, keypad, and fingerprint module with solid optical sensor for high reliability as well as easy operation.

The Dual Pro I or II S/W can Control and Monitor multiple chained Finger007, 505R of the series of single door products up to 256 doors via RS422, TCP/IP and Dial Modem.

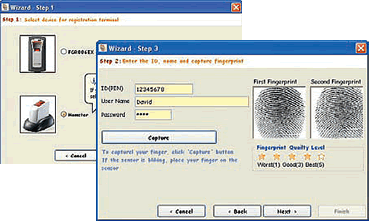

Finger Template Enrollment will be done from the registration unit and/or local units. Those enrolled finger templates can be distributed to the local installed finger units' batch or individually via Dual Pro I S/W or Dual Pro II S/W. (See the details of Dual Pro I S/W and Dual Pro II S/W) The Finger007 can accommodate 1,000 users (optional 2,000 and 4,000 users) and store 26,000 events. Built-in 4" (10cm) proximity reader and fingerprint module offers various access modes in any combination of proximity cards, PIN numbers, and fingerprints. The user may change access mode by time schedule. The Finger007 incorporates 4 inputs and 4 outputs including 2 Form C relays, and has a port for an anti-passback exit reader. All I/Os and operating parameters are programmable using the keypad.

bullet 1:1 Verification and 1: N Identification
bullet Identification Method: by PIN Key (default) by Auto Touch Sensor (optional): FINGER007A / PA
bullet 125KHz Proximity / PIN and Fingerprint Recognition
bullet Dual Function for Access Control and Time & Attendance
bullet 1,000 / 2,000 / 4,000 Fingerprint Users / 26,000 Event Buffers
bullet ID only Function for Fingerprint Unregisterable Person
bullet Standalone / Network Communication via RS232 / RS422 / RS485 (Max.32ch), TCP/IP (External LAN Converter required)
bullet 1ea of External Reader Port for Anti-passback Function : 26bit Wiegand, 4 / 8bit Burst for PIN
bullet Independent 4 Inputs and 4 Outputs including 2ea of 2 Form-C Relay Outputs
bullet High Protection from Scratch and ESD (Electro Static Discharge)
bullet High Quality Optical Sensor
bullet Dual Tamper Switches
bullet Alarm Event Monitoring using Tamper Switch (by Application Software)
bullet Options: 1,000 / 2,000 / 4,000 Fingerprint Users Auto Touch Sensor for Identification (FINGER007A / PA)
bullet Compatible Software: STARWATCH DUAL PRO I / II

Recommended hardware: Finger Enrollment Station (See below)

FGR007A

Fingerprint Identification Access Controller

bullet 1:1 Verification and 1: N Identification
bullet Auto Touch Sensor for Identification
bullet Dual Function for Access Control and Time & Attendance
bullet 1,000 / 2,000 / 4,000 Fingerprint Users(optional) / 2,000 Event Buffers
bullet 125KHz Proximity and Fingerprint Recognition
bullet ID only Function for Fingerprint Unregisterable Person
bullet Standalone / Network Communication via RS232 / RS422 / RS485 (Max.32ch), TCP/IP (External LAN Converter Required), Wireless (e.g. Bluetooth Module required)
bullet 1ea of External Reader Port for Anti-passback Function: 26bit Wiegand, 4 / 8bit Burst for PIN
bullet Independent 2 Inputs and 2ea of 2 Form-C Relay Outputs
bullet High Protection from Scratch and ESD (Electro Static Discharge)
bullet High Quality Optical Sensor
bullet Tamper Switch
bullet Alarm Event Monitoring using Tamper Switch (by Application Software)
bullet Mode selection : RF only / Fingerprint only / RF+ Fingerprint
bullet Compatible Software: STARWATCH DUAL PRO I / II

Recommended hardware: Finger Enrollment Station (See below)

FINGER006/P/EX

Slave Finger Biometric Reader with Proximity / Keypad and LCD

The FINGER006 is Finger Biometric Slave Reader for the 3rd party's controller integr-ation as a reader. It has a built-in proximity reader, back-lit keypad and LCD display, and finger print module with solid optical sensor for high reliability and easy operation.

Verification and Data Transfer to Control Panel: This user-friendly device allows easy registration of a proximity card, PIN number, and two fingerprints for each user. Once the Enrolled Fingerprints are verified, user's proximity card with Wiegand 26 or higher data format and/or pin number data, will be transferred to the connected control panel.

Finger Template Enrollment with the 3rd party's control panel will be done from the registration unit and/or local units. The enrolled finger templates can be distributed to the local installed finger units' batch or individually via StarWatch Fingerprint Reader Pro S/W. (See details of StarWatch Fingerprint Reader Pro)

bullet 1:1 Verification and 1: N Identification
bullet Identification Method: by PIN Key (default) by Auto Touch Sensor (optional): FINGER006A / PA / EXA
bullet 125KHz Proximity / PIN and Fingerprint Recognition
bullet 1,000 / 2,000 / 4,000 Fingerprint Users
bullet ID only Function for Fingerprint Unregistrerable Person
bullet Network Communication via RS232 / RS422 / RS485 (Max.255ch), TCP/IP (External LAN Converter required)
bullet 1ea of External Reader Port (FINGER006EX): 26 / 34bit Wiegand, 4 / 8bit Burst for PIN and ABA Track II
bullet 26bit Wiegand and ABA Track II Output Format
bullet Current Time Display on the LCD
bullet High Protection from Scratch and ESD (Electro Static Discharge)
bullet High Quality Optical Sensor
bullet Dual Tamper Switches
bullet Options: 1,000 / 2,000 / 4,000 Fingerprint Users, Supervisory Signal Auto Touch Sensor for Identification (FINGER006A / PA / EXA)
bullet Compatible Software: STARWATCH DUAL PRO I / II, iTDC PRO I / II
bullet Compatible Controller: iCON100, iTDC, Third Party Controller, Standalone Controller

Recommended hardware: Finger Enrollment Station (See below)

FGR006/EX

Finger Biometric Reader

bullet 1:1 Verification and 1: N Identification
bullet Identification Method: by Auto Touch Sensor (optional) : FGR006A / EXA
bullet 125KHz Proximity and Fingerprint Recognition
bullet 1,000/2,000/4,000 Fingerprint Users
bullet Various Operating Mode
bullet ID only Function for Fingerprint Unregistrerable Person
bullet Network Communication via RS232 / RS422 / RS485 (Max.255ch), TCP/IP (External Converter required)
bullet Upload/Download Fingerprint Templates using PDA or Notebook (Optional, RS232C Stereo Jack required)
bullet Fingerprint Register / Reader Mode using Master Card
bullet Off-line Add / Delete Function using Master Card
bullet 26bit Wiegand (default) and ABA Track II (optional) Output Format
bullet 1ea of External Reader Port: (FGR006EX) 26 / 34bit Wiegand, 4 / 8bit Burst for PIN and ABA Track II
bullet High Protection from Scratch and ESD (Electro Static Discharge)
bullet High Quality Optical Sensor
bullet Tamper Switch
bullet Options: Supervisory Signal RS232C Stereo Jack
bullet Compatible Software: STARWATCH DUAL PRO I / II, iTDC PRO I / II FINGERPRINT ENROLLMENT PRO 2006
bullet Compatible Controller: iCON100, iTDC, Third Party Controller, Standalone Controller

Recommended hardware: Finger Enrollment Station (See below)

FINGER ENROLLMENT STATION (HAMPSTER)

Finger Biometric Enrollment Scanner

bullet Precise user authentication through the distinct algorithm and recognition ratio
bullet Compact and elegant design, which is more convenient to use
bullet Excellent product durability that assures a long life
bullet Provides fast matching
bullet USB interface

ITEM Specification
Interface Type  USB
External Interface Spec.  USB1.1
Fingerprint Recognition Sensor  OPU01M
Resolution (DPI)  500 DPI
Dimension (mm)  25.3(W) x 40.7(L) x 67.7(H)(mm)
OS  Windows/2000/XP/2003
Operating Temperature  0 ~ 40
Operating Voltage (V)  5(V)
Certification  MIC,CE,FCC,WHQL
